Your Comprehensive Guide to the 3020 CO₂ Laser Engraver

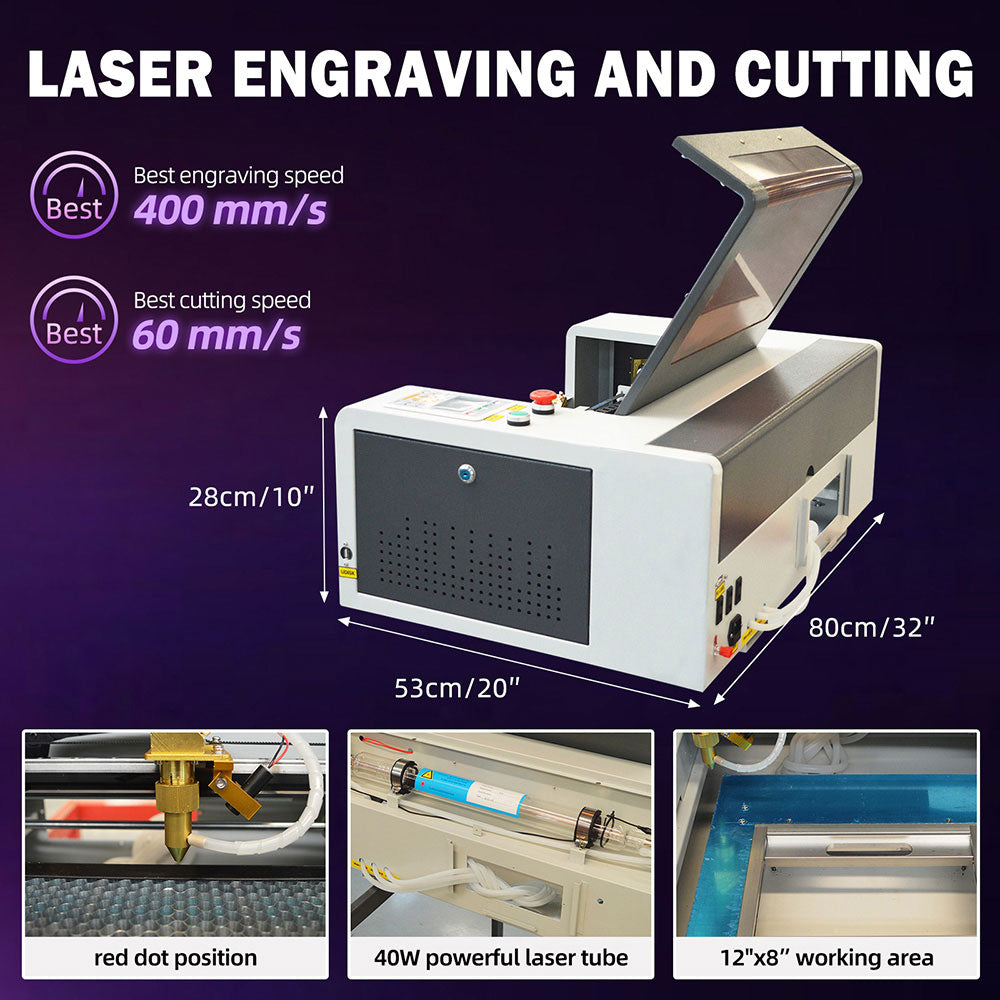

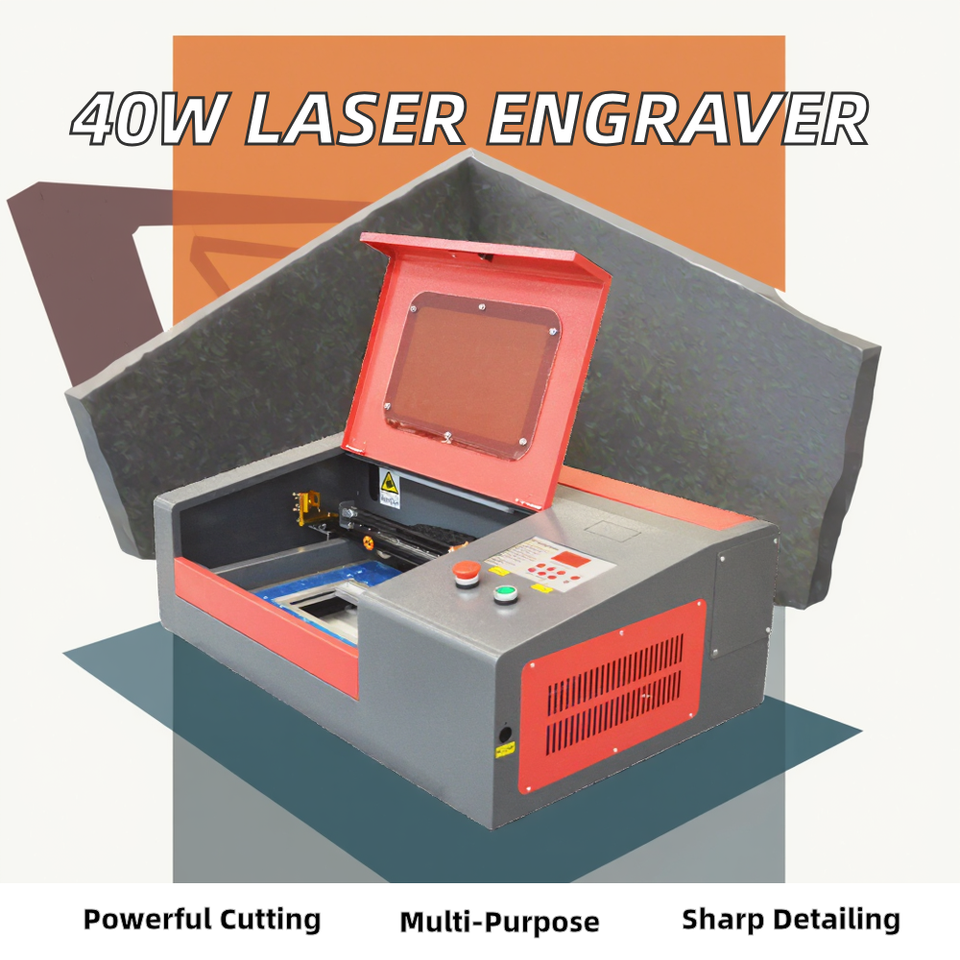

What Is the 3020 CO2 Laser Engraver?
The 3020 CO2 laser engraver is a compact, desktop‑sized machine that uses a 40‑W carbon‑dioxide tube to cut or etch a wide range of materials. Its “3020” designation refers to the work area—approximately 300 mm by 200 mm—making it a popular choice for hobbyists, small‑batch manufacturers, and educators who need precision without a massive footprint.
Key Specs You Should Know
- Laser Power: Typically 40 W, though some models allow upgrades to 60 W for deeper cuts.
- Working Area: 300 mm × 200 mm, providing enough space for signage, jewelry, and prototype parts.
- Resolution: Up to 1000 dpi for fine engraving detail.
- Supported Materials: Wood, acrylic, leather, paper, fabric, glass (with coating), and certain plastics.
- Connectivity: USB, Wi‑Fi, and sometimes Ethernet, enabling direct file transfer from a PC or tablet.
- Control Software: Often bundled with LightBurn, RDWorks, or proprietary interfaces that let you import SVG, DXF, and image files.
Setting Up Your Machine: First Steps
Unpacking feels like unwrapping a new set of possibilities, but a careful start saves headaches later. Begin by placing the unit on a stable, heat‑resistant table—ideally away from drafts. Connect the power cord to a dedicated 110 V outlet, then hook up the water‑cooling line if your model includes one; proper cooling prolongs tube life.

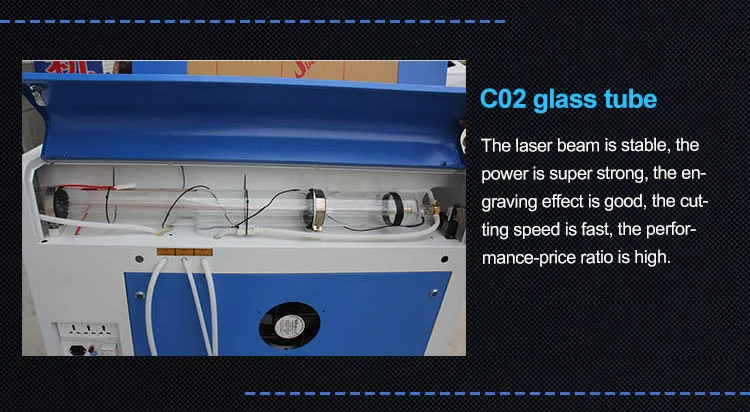

Next, install the laser tube according to the manufacturer’s diagram. Most kits use a simple twist‑lock, but double‑check that the tube sits snugly to avoid misalignment. Once everything is physically in place, power on the machine and run the self‑test routine; the display should show a green “ready” status if the optics are clean and the tube is functioning.
Choosing Materials and Design Tips
Material selection dramatically influences both safety and outcome. For beginners, start with 3 mm birch plywood or 5 mm acrylic—both cut cleanly at moderate speeds. If you venture into leather or fabric, lower the power and increase the speed to prevent scorching.
When designing, remember that the laser follows the darkest parts of an image. Converting a photograph to a high‑contrast black‑and‑white version often yields the best results. Use vector files for engraving text; they maintain crisp edges regardless of scaling.
Layering can add depth: a light‑gray pass for a subtle background, followed by a full‑power pass for the main outline. This technique works especially well on wooden plaques where a two‑tone effect is visually striking.
Safety Practices and Maintenance
Even a modest 40 W beam can cause serious injury. Always wear laser‑appropriate safety goggles that block the CO2 wavelength (10.6 µm). Keep the enclosure closed while the laser runs, and never look directly at the beam—even the reflected spot can be harmful.
Ventilation is another non‑negotiable. A small inline fan paired with a charcoal filter will capture fumes from acrylic and wood. If you lack a dedicated extractor, open a window and position a portable fan to pull air outward.
Routine maintenance keeps performance steady. Clean the mirror and focusing lens with a lint‑free cloth and isopropyl alcohol after each week of heavy use. Replace the air filter monthly; a clogged filter reduces power and can overheat the tube.
Common Troubleshooting Scenarios
Laser power drops unexpectedly. First, check the cooling system. Overheating often forces the tube to throttle down. Verify water flow and ensure the pump is running. If cooling is fine, inspect the power supply connectors for looseness.
Material isn’t cutting through. Verify the focal point: a mis‑focused beam will skim the surface without penetrating. Adjust the Z‑axis until the laser’s smallest dot appears on a test piece. Also, confirm you’re using the correct power and speed settings for the material thickness.
Burn marks appear on the edges. This usually means the laser is staying on too long. Reduce the pass count or increase the travel speed. Adding a “air assist”—a gentle stream of compressed air—helps blow away debris that can cause scorching.
Frequently Asked Questions
Can I upgrade the 3020’s laser tube to a higher wattage?
Most manufacturers sell optional 60 W tubes that fit the same mount. Upgrading improves cut depth but may require a stronger power supply and enhanced cooling, so check the spec sheet before buying.
Is the 3020 suitable for engraving metal?
Directly engraving bare metal isn’t feasible with a CO2 source. However, you can use a metal‑coating spray (often called “laser‑marking spray”) on the surface; the laser then etches the coating, leaving a permanent mark.
How long does a typical laser tube last?
Under normal use and with proper cooling, a 40 W CO2 tube can last between 1,000 and 2,000 hours. Regular cleaning and avoiding continuous full‑power operation extend its lifespan.
